Power Transformer

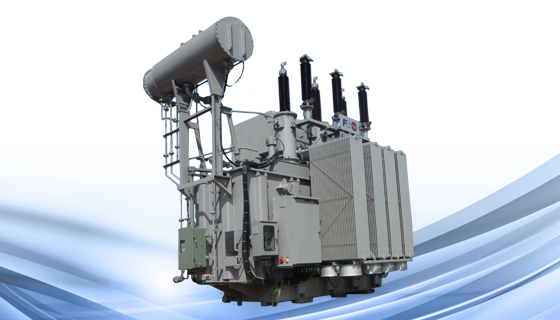

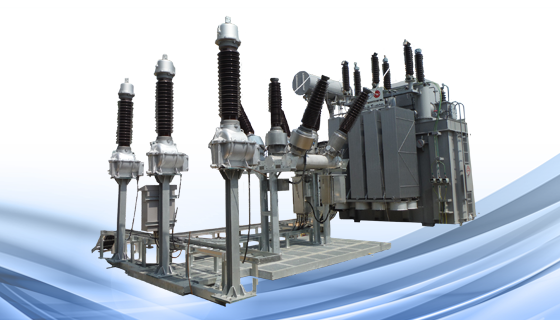

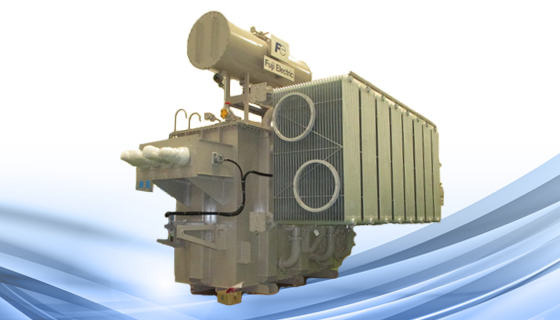

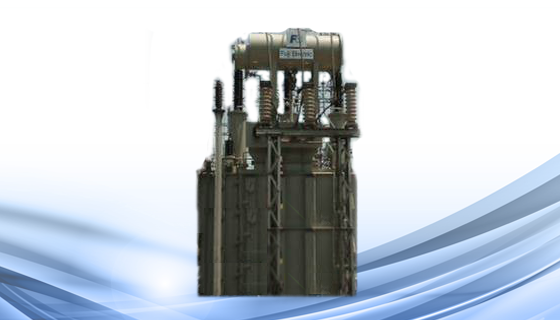

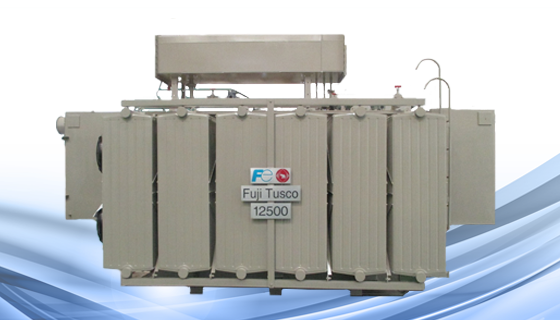

Power Transformer
Power Transformer as Step-down transformer in substations and step-up transformers in power station are essential components in those facilities. These transformers cover the electric power for many of electricity consumers, so highly reliable transformer are required.
Fuji Tusco provide the highest efficiency transformer within the limits where economy is not lost. Because of well arranged core construction, no-load loss is reduced.
In relation, to the load loss occupying the majority of total loss, as a result of employing a transposed conductor, achieving non-magnetization of metal adjacent to the winding, and providing a magnetic shielding of tank inner wall, stray-load loss has been reduced significantly whereby transformer with high efficiency and little loss have been created.
btn_go_to_the_website

Distribution Transformer

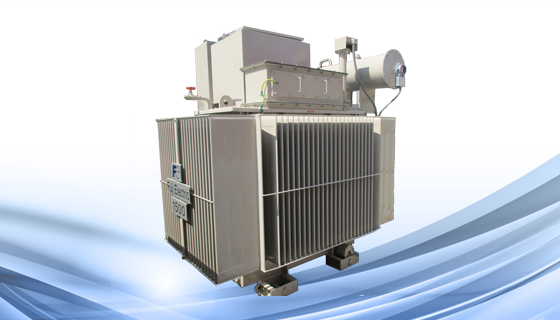

Distribution Transformer
Rating
30kVA up to 30MVA
Model
Hermetically Sealed type, Conservator Type, Sealed with Nitrogen Gas Cusion
Tank Design
Plain Tank (up to 50kVA), Corrugate Wall (up to 3MVA), Radiator Fin
Description
Distribution transformers, installed in substations near to user, receive high voltage electric power from the grid, reduce voltage, and distribute electricity to user and lower voltage substations.
Fuji Tusco provides distribution transformers below 10MVA Rated Power and below 36kV Voltage and necessary accessories are available if requested. The most suitable one will be delivered in accordance with customer's requirements.
Distribution transformers, installed on utility poles or on concrete pads, act as the last transformers providing the final utilization voltage (100V-600V) at the customer's facilities and there is the variety of requirements, installation type, electrical ratings, tank design, accessories,etc.
Fuji Tusco has many experiences of delivery these transformers for domestic customers in Thailand and also for various other countries. Distribution transforrmers of Fuji Tusco are available up to 9,999kVA capacity and up to 36kV voltage. Each type of pole-mounted/pad-mounted installation, hermetically-sealed/conservator/Sealed with Nitrogen Gas Clusion type design, and plain/corrugated-wall/radiator-fins tank construction, is standardized and able to be supplied.

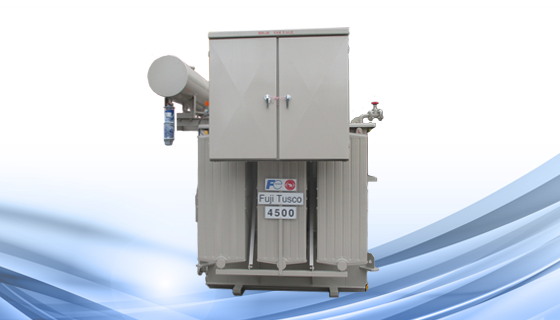

Medium & Large Distribution Transformer


Small Distribution Transformer

Rectifier Transformer

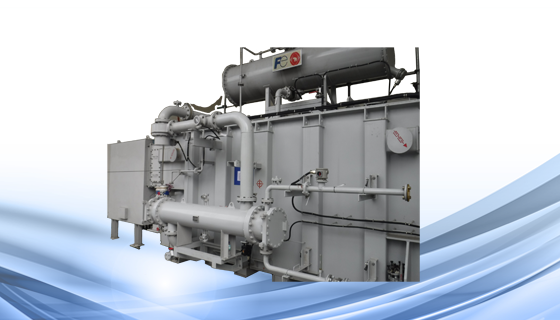

Rectifier Transformer
Rating
Up to 30MVA
Voltage
Up to77kV
Cooling Type
OFWF, OFAF, ONAN, ONAF
Description
Rectifier Transformer are, and regarding Rectifier Transformers are large variety of applications and have various designs up to combination of voltage regulation, double stack configuration, phase-shifting, interphase reactors,transductros including filter-winding. Therefore they are using to separate voltage regulation unit and for the application range from large aluminium electrolyses to various medium-size operation.

Arc Furnace Transformer

Arc Furnace Transformer
Rating
Up to 30MVA
Voltage
Up to77kV
Cooling Type
OFWF, OFAF, ONAN, ONAF
Description
Arc Furnace Transformers are using for steel furnace, ladle furnace and ferroalloy furnace and are similar to short or submerged to furnace, are required for many different furnace processes and applications.
Arc Furnace Transformers operate under strict conditions relating to frequent overcurrents and overvoltages generated by short circuits including the HV circuit-breaker
Fuji Tusco provides Arc Furnace Transformers up to 30MVA and primary/secoundary voltage up to 70kV in according with customer's requirements.
